For ordering information click on the part number.
For larger image click on the picture. |
   Cabling documentation: IOLAN RJ45 Pinouts |
| |
Description |
Power Cord |
Product Part Number |
 |
IOLAN SCS48 DAC - 48 x RJ45 serial ports, Dual AC power, RS232 interface, Dual 10/100/1000 Ethernet, PCI slot for modem or wireless card, advanced feature set |
USA |
  04030214 |
| UK |
04030211 |
| EU |
04030212 |
| SA |
04030215 |
| AUS |
04030216 |
 |
IOLAN SCS48 - 48 x RJ45 serial ports, Single AC power, RS232 interface, Dual 10/100/1000 Ethernet, PCI slot for modem or wireless card, advanced feature set |
USA |
04030294 |
| UK |
04030291 |
| EU |
04030292 |
| SA |
04030295 |
| AUS |
04030296 |
 |
IOLAN SCS32 DC - 32 x RJ45 serial ports, 48VDC power, RS232 interface, Dual 10/100/1000 Ethernet, PCI slot for modem or wireless card, advanced feature set |
48v DC |
04030270 |
 |

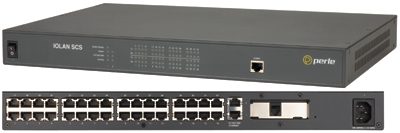

IOLAN SCS32 - 32 x RJ45 serial ports, Single AC power, RS232 interface, Dual 10/100/1000 Ethernet, PCI slot for modem or wireless card, advanced feature set |
USA |
04030284 |
| UK |
04030281 |
| EU |
04030282 |
| SA |
04030285 |
| AUS |
04030286 |
 |
IOLAN SCS32 DAC - 32 x RJ45 serial ports, Dual AC power, RS232 interface, Dual 10/100/1000 Ethernet, PCI slot for modem or wireless card, advanced feature set |
USA |
04030204 |
| UK |
04030201 |
| EU |
04030202 |
| SA |
04030205 |
| AUS |
04030206 |
 |

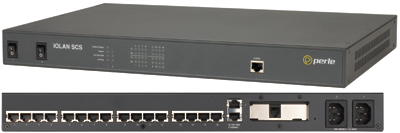

IOLAN SCS16 DAC - 16 x RJ45 serial ports, Dual AC power, RS232 interface, Dual 10/100/1000 Ethernet, PCI slot for modem or wireless card, advanced feature set |
USA |
04030254 |
| UK |
04030251 |
| EU |
04030252 |
| SA |
04030255 |
| AUS |
04030256 |
 |
IOLAN SCS16 DC - 16 x RJ45 connector, 48VDC power, EIA232 interface, Dual 10/100/1000 Ethernet, PCI slot for V.92 modem card, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD |
48v DC |
04030860 |
 |
IOLAN SCS16 - 16 x RJ45 serial ports, Single AC power, RS232 interface, Dual 10/100/1000 Ethernet, PCI slot for modem or wireless card, advanced feature set |
USA |
04030244 |
| UK |
04030241 |
| EU |
04030242 |
| SA |
04030245 |
| AUS |
04030246 |
 |
IOLAN SCS8 DAC - 8 x RJ45 serial ports, Dual AC power, RS232 interface, Dual 10/100/1000 Ethernet, PCI slot for modem or wireless card, advanced feature set |
USA |
04030234 |
| UK |
04030231 |
| EU |
04030232 |
| SA |
04030235 |
| AUS |
04030236 |
 |
IOLAN SCS8 DC - 8 x RJ45 connector, 48v DC power, EIA232 interface, Dual 10/100/1000 Ethernet, PCI slot for V.92 modem card, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD |
48v DC |
04030870 |
 |
IOLAN SCS8 - 8 x RJ45 serial ports, Single AC power, RS232 interface, Dual 10/100/1000 Ethernet, PCI slot for modem or wireless card, advanced feature set |
USA |
04030224 |
| UK |
04030221 |
| EU |
04030222 |
| SA |
04030225 |
| AUS |
04030226 |
Accessories:| Accessories | |
3m Cbl-Straighthru |
3 meter RJ45 to RJ45 CAT5 Straight-thru cable #1100360-10 |
04005120 |
|
IOLAN Modem Card EU |
Internal V.92 modem card for IOLAN SCS rack series - EU version |
04030852 |
|
IOLAN Modem Card UK |
Internal V.92 modem card for IOLAN SCS rack series - UK version |
04030851 |
|
IOLAN Modem Card USA |
Internal V.92 modem card for IOLAN SCS rack series - USA version |
04030854 |
|
IOLAN RACK DIN RAIL |
DIN Rail Mounting Kit for all IOLAN Rack models |
04032490 |
|
PC Card Adapter |
IOLAN SCS Adapter for 3rd party PC (PCMCIA) cards. |
04032120 |
Cable Accessories
Please click here to see what adapters you may need | |
3m Cbl-Sun/Cisco Prl |
3m Cbl-Sun/Cisco Prl - RJ45-RJ45 IOLAN DS to Sun/Cisco 3m Cable |
04030070 |
|
DBA0010 |
DBA0010 - RJ-45F to DB-25F crossover (DTE) adapter for console port #1100220-10 |
04006950 |
|
DBA0010 8pck |
DBA0010 8pck - 8 pack of #04006950 IOLAN-RJ45F to DB25F (DTE) crossover adapter |
04031240 |
|
DBA0011 |
DBA0011 - RJ-45F to DB-25M crossover (DTE) adapter for console ports. #1100230-10 |
04006960 |
|
DBA0011 8pck |
DBA0011 8pck - 8 pack of #04006960 IOLAN-RJ45F to DB25M (DTE) crossover adapter |
04031250 |
|
DBA0013 |
DBA0013 - RJ-45F to DB-25M straight-thru (DCE) adapter for modems #1100260-10 |
04006990 |
|
DBA0013 8pck |
DBA0013 8pck - 8 pack of #04006990 IOLAN-RJ45F to DB25M Straight-thru adapter for modems |
04031280 |
|
DBA0020 |
DBA0020 - RJ-45F to DB-9F crossover (DTE) adapter for console ports. #1100240-10 |
04006970 |
|
DBA0020 8pck |
DBA0020 8pck - 8 pack of #04006970 IOLAN-RJ45F to DB9F (DTE) crossover adapter |
04031260 |
|
DBA0021 |
DBA0021 - RJ-45F to DB-9M crossover (DTE) adapter for console ports. #1100250-10 |
04006980 |
|
DBA0021 8pck |
DBA0021 8pck - 8 pack of #04006980 IOLAN-RJ45F to DB9M (DTE) crossover adapter |
04031270 |
|
DBA0023 |
DBA0023 - RJ-45F to DB-9M straight-thru (DCE) adapter for modems #1100340-10 |
04007200 |
|
DBA0031 |
DBA0031 - IOLAN - RJ45M to RJ45F Sun/Cisco crossover adapter #1100219-10 |
04030080 |
|
DBA0031 8pck |
DBA0031 8pck - 8 pack of #04030080 IOLAN-RJ45M to RJ45F Sun/Cisco crossover adapter |
04031230 |
Maintenance agreements - Console Server / Device Server / Terminal Server
Please click here to check for maintenance availability in your region | |
NSS- 8 PortONSITE5x7 |
8 Port Terminal/Device/Console Servers - On Site Mon-Fri 9am - 5pm |
SOS5NSS08 |
|
NSS- 8 PortONSITE7X24 |
8 Port Terminal/Device/Console Servers - On-Site 7x24 |
SOS7NSS08 |
|
NSS- 8 PortXPRESSREP |
8 Port Terminal/Device/Console Servers - Express Replacement |
SERNSS08 |
|
NSS- 8 PortXPRESSREPF |
8 Port Terminal/Device/Console Servers - Express Replacement French |
SERNSS08F |
|
NSS-16 PortONSITE5x7 |
16 Port Terminal/Device/Console Servers - On-site Mon-Fri - 9am - 5pm |
SOS5NSS16 |
|
NSS-16 PortONSITE7X24 |
16 Port Terminal/Device/Console Servers - On-site 7x24 |
SOS7NSS16 |
|
NSS-16 PortZPRESSREP |
16 Port Terminal/Device/Console Servers - Express Replacement |
SERNSS16 |
|
NSS-16 PortZPRESSREPF |
16 Port Terminal/Device/Console Servers - Express Replacement French |
SERNSS16F |
|
NSS-32 portEXPRESSREP |
32 Port Terminal/Device/Console Servers - Express Replacement |
SERNSS32 |
|
NSS-32 PortONSITE5x7 |
32 Port Terminal/Device/Console Serversr - On-site Mon-Fri, 9am-5pm |
SOS5NSS32 |
|
NSS-32 PortONSITE7X24 |
32 Port Terminal/Device/Console Servers - On-site 7x24 |
SOS7NSS32 |
|
NSS-32 PortXPRESSREPF |
32 Port Terminal/Device/Console Servers - Express Replacement French |
SERNSS32F |
|
NSS-48 PortONSITE5x7 |
48 Port Terminal/Device/Console Servers - On-site Mon-Fri, 9am-5pm |
SOS5NSS48 |
|
NSS-48 portXPRESSREP |
48 Port Terminal/Device/Console Servers - Express Replacement |
SERNSS48 |
|
NSS-48 PortXPRESSREPF |
48 Port Terminal/Device/Console Servers - Express Replacement French |
SERNSS48F |
|
NSS-48PortONSITEF7x24 |
48 Port Terminal/Device/Console Servers - On-site 7x24 |
SOS7NSS48 |
|
|
|
